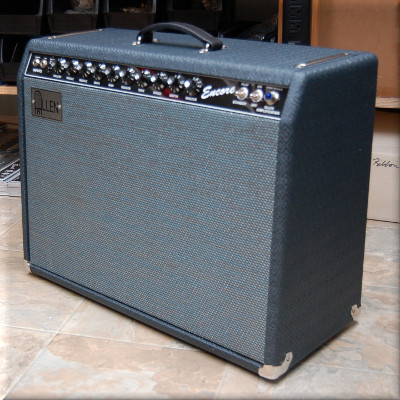

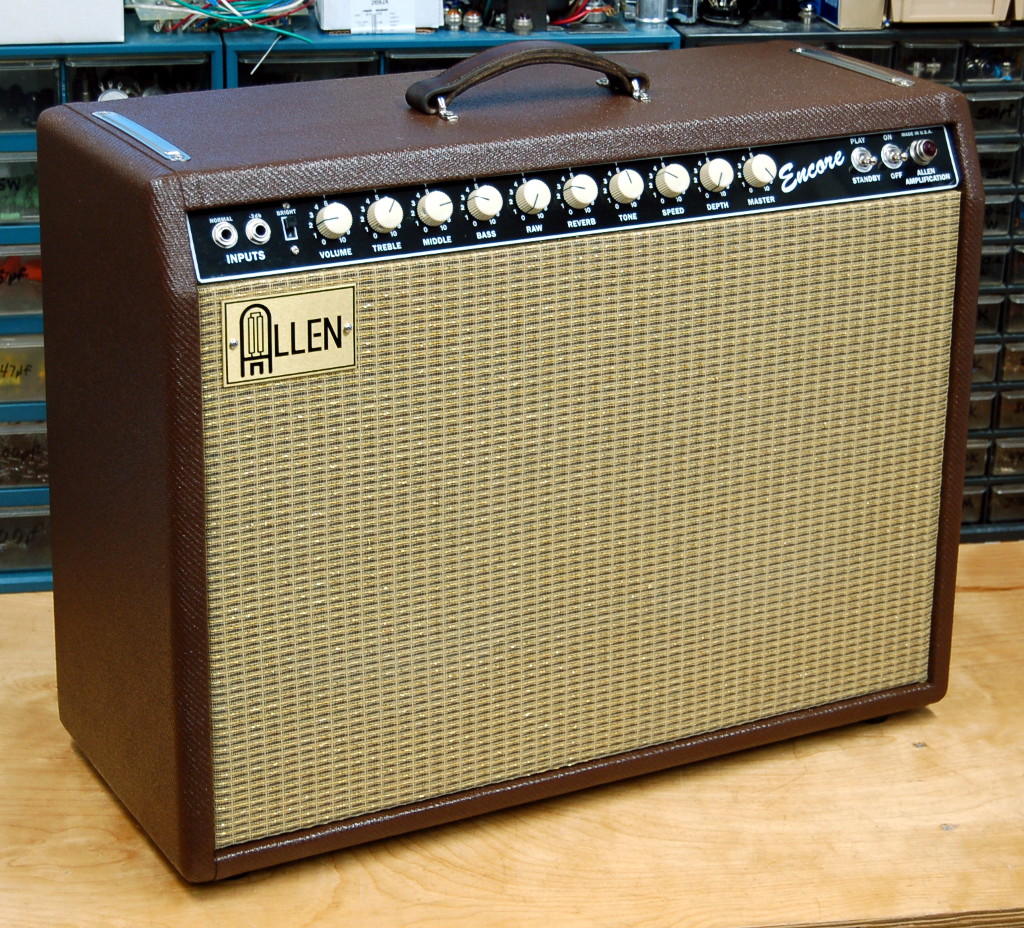

Encore
|
Output Power |
22W with 6V6s, 35W with 6L6s using a plug-in solid-state rectifier. |
||||||||||||||||||||
|
Tube Compliment |
(1) 5AR4, (2) 6L6s and (5) 12AX7s (or 5Y3GT with 2 6V6s). |
||||||||||||||||||||
|
Class |
AB push-pull with adjustable fixed bias. |
||||||||||||||||||||
|
Equalization |
Bass, Treble and Midrange controls, BRIGHT switch and RAW control. |
||||||||||||||||||||
|
Reverb |
All-tube, long 3-spring medium-delay tank in a heavy vinyl reverb bag with MIX and TONE controls, shielded cables. |
||||||||||||||||||||
|
Master Volume |
Post-driver using dual potentiometer and (4) coupling capacitors. |
||||||||||||||||||||
|
Chassis |
Stainless-steel angled-front chassis with welded corners. |
||||||||||||||||||||
|
Potentiometers |
Full-size (15/16") chassis-mount with 3/8" bushing, solid metal shaft, damped action. |
||||||||||||||||||||
|
Circuitry |
Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and U.S. made molded type sockets. |
||||||||||||||||||||
|
Topology |
Design is loosely based on the mid 60s Fender Vibrolux Reverb™ but without a normal channel. Design is enhanced with 2-knob reverb, non-opticoupler tube tremolo, master volume control, middle control, RAW control, rear-panel bias measurment jacks, impedance switch, and front-panel power switches. |
||||||||||||||||||||
|
Cabinet |
Finger-jointed pine cabinet with black Tolex covering and Black/White/Silver sparkle or black grill cloth. Optional Blond/Wheat, Blond/Oxblood, Brown/Wheat and Tweed/Oxblood coverings available. 1/2" birch plywood floating-type baffleboard and (2) screw-on rear panels. Chrome bottom corners, rubber feet, chrome chassis straps, black-rubber steel-reinforced carrying handle with chrome caps/screws. Leather handle also available. |
||||||||||||||||||||
|
Speaker(s) |
(1) 12" Red, White and Blues, (2) 10" Copperheads or (1) 15" Legend 151 standard. |
||||||||||||||||||||
|
Special Features |
Brown Vibrolux™ tremolo, impedance switch, unique RAW mid/gain boost control, front-panel power switches, master volume, and convenient rear-panel bias measurment jacks. |
||||||||||||||||||||
|
Power Cord |
Black, 12-foot, 3-prong grounded heavy-duty 18/3 with strain relief bushing. |
||||||||||||||||||||
|
Power Switches |
Front-panel mounted POWER and STANDBY toggle switches for easy access. |
||||||||||||||||||||
|
Indicator Light |
Front panel pilot-light for AC power with choice of red, green, blue, amber, or purple jeweled lens and #47 bulb. |
||||||||||||||||||||
|
Size and Weight |
1x12 Combo - 24"W x 18"H x 10"D, 46 lbs. |
||||||||||||||||||||
|
