* N E W S *

Sound Clips!

NEW! Brown Sugar sound clips on the Brown Sugar Page! Let us know if you have a high quality sound clip of your Allen Amp that you would like to have posted.

Black Faceplate Encore!

New! Black Faceplate Style Encore Now Available!

Custom Cabinets!

Custom Cabinets for external speakers and Fender® 60s and 70s chassis.

Tuki Amp Covers

Now available! Tuki padded covers to fit many current models. See parts page for details.


2008 Accomplice

Accomplice

Accomplice

Output Power

22 watts (with 6V6 power tubes), 35 watts (with 6L6 power tubes), 40 watts with optional transformers and 6L6 power tubes.

Tube Compliment

(4) 12AX7, (2) 6V6GT or (2) 6L6GC, and (1) GZ34.

Class

AB push-pull with adjustable fixed bias.

Equalization

Bass, Middle, Treble and RAW controls plus BRIGHT switch.

Reverb

All-tube driven, 3-spring medium delay Accutronics tank in padded Tuki reverb bag with shielded cables and TONE control.

Master Volume

Post-driver using dual potentiometer and (4) coupling capacitors.

Chassis

Now featuring an 18-gauge non magnetic stainless-steel chassis with TIG welded corners.

Circuitry

Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and high-quality molded type sockets.

Transformers

Cool and quiet running Allen TP40D 160ma power transformer, TO35MT upgrade paper bobbin interleaved winding output transformer, TR reverb transformer and TC choke are all U.S. made. See the TRANSFORMERS page for details. Optional 40W transformer set features the TP35, TO40MT, TR, and larger TRCH choke (available for $25).

Topology

Design is loosely based on the blackface Fender Deluxe Reverb™ but without a normal channel or vibrato function. Design is enhanced with Bright switch, middle control, RAW control, Reverb TONE control, master volume, impedance switch, and bias measurement jacks.

Cabinet

Finger-jointed pine with black Tolex covering, black/white/silver sparkle grill cloth, Tolex covered rear screw-on panels, rubber-cushioned chrome glides (feet), black rubber (steel reinforced) carrying handle with chrome caps and screws.

Speaker(s)

Eminence Red, White and Blues 12" speaker, Eminence Legend 151 15", or (2) Eminence Copperheads 10".

Special Features

Rear-panel bias measurement jacks, RAW mid/gain boost control, impedance switch, extension speaker jack, TONE control for the reverb, and new IEC power input connector with spare fuse drawer and built-in RF/EMI filter.

Size and Weight

1x12 Combo - 22"W x 18"H x 10"D, 42 lbs.
2x10 Combo - 22"W x 20"H x 10"D, 50 lbs.
1x15 Combo - 22"W x 20"H x 10"D, 49 lbs.
Head - 22"W x 10"H x 10"D, 30 lbs.

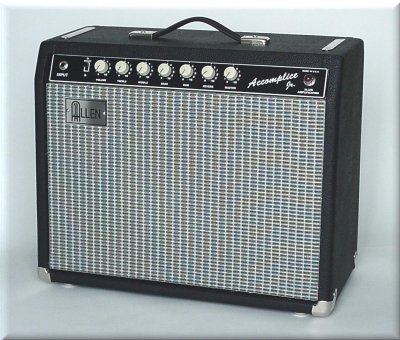

Accomplice Jr. Combo

Accomplice Jr. Combo

NEW! - Accomplice Jr. Same power and features (less the reverb tone control and the impedance switch) in a smaller chassis. The 1x10 combo packs 35W in 35lbs with 6L6 power tubes. 6V6s may also be used for 22W. Eminence Copperhead 10" speaker and long Accutronics reverb tank for big amp tone. 1x10 combo or head. Also available in kit form.

Size and Weight

1x10 Combo - 20"W x 16"H x 9-1/4"D, 34 lbs.
1x12 Combo - 20"W x 18"H x 9-1/4"D, 38 lbs.
Head - 20"W x 9"H x 9-1/4"D, 25 lbs.

Price

Accomplice Jr. head

$1,349

Accomplice Jr. 1x10 combo

$1,349

Accomplice Jr. 1x12 combo

$1,549



Accomplice head

$1,499

Accomplice 1x12 combo

$1,699

Accomplice 2x10 combo

$1,749

Accomplice 1x15 combo

$1,749

Options:

Eminence Red Fang 12" in the 1x12

$75

Any other Eminence Patriot or Redcoat series speaker (except Red Fang or Commonwealth)

no charge

40 watt transformer set

$25

Blond/Wheat or Blond/Oxblood

$50

Tweed/Oxblood

$100

Tuki padded cover (Accomplice Jr. 1x12 only)

$70

Tuki padded cover (Accomplice 1x12 only)

$75


Now available in kit form! See the Amp Kits page.


Matching speaker cabinets available too! See the Cabinets page.
